Star CNC Swiss Type Automatic Lathe SW-12RⅡ
SW-12RII heading for the highest capability in machining of small diameter workpieces.
• Simultaneous machining of turning, cross drilling,etc. is possible by the independently controlled,opposing gang-type tool post.
• The guide bush/non-guide bush selector function ensures optimum machining for both long and short workpieces.
• STAR Motion Control System is a unique control technology which minimizes non-cutting time.
商品說明
 |
|||
|---|---|---|---|
| Tool Post | Tooling | ||
| ① |  |
Turning tool | 7 tools |
| Front-end working tool | 4 tools | ||
| Rear-end working tool | 4 tools | ||
| Power-driven tool | 6 tools | ||
| ② |  |
Rear-end working tool | 8 tools |
| Stationary tool | max.8 tools | ||
| Power-driven tool | max.6 tools | ||

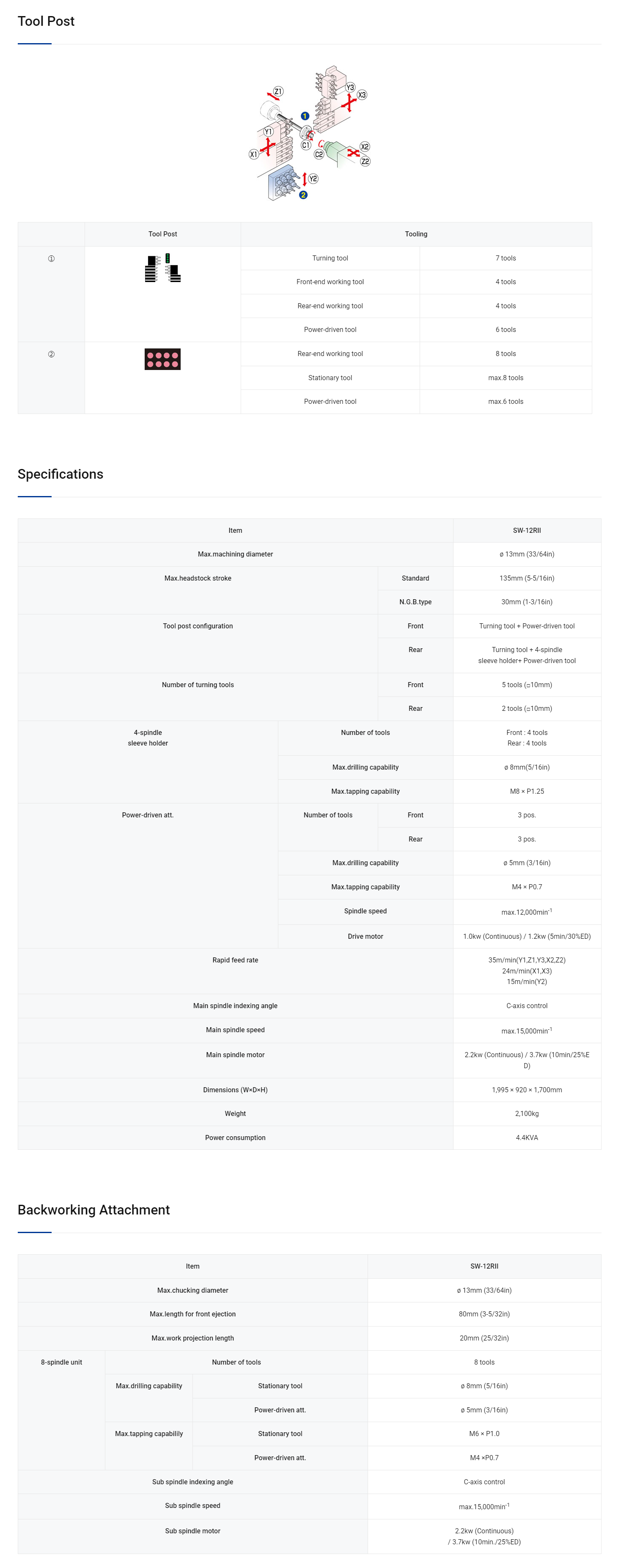

Specifications
| Item | SW-12RII | ||
|---|---|---|---|
| Max.machining diameter | ø 13mm (33/64in) | ||
| Max.headstock stroke | Standard | 135mm (5-5/16in) | |
| N.G.B.type | 30mm (1-3/16in) | ||
| Tool post configuration | Front | Turning tool + Power-driven tool | |
| Rear | Turning tool + 4-spindle sleeve holder+ Power-driven tool |
||
| Number of turning tools | Front | 5 tools (□10mm) | |
| Rear | 2 tools (□10mm) | ||
| 4-spindle sleeve holder |
Number of tools | Front : 4 tools Rear : 4 tools |
|
| Max.drilling capability | ø 8mm(5/16in) | ||
| Max.tapping capability | M8 × P1.25 | ||
| Power-driven att. | Number of tools | Front | 3 pos. |
| Rear | 3 pos. | ||
| Max.drilling capability | ø 5mm (3/16in) | ||
| Max.tapping capability | M4 × P0.7 | ||
| Spindle speed | max.12,000min-1 | ||
| Drive motor | 1.0kw (Continuous) / 1.2kw (5min/30%ED) | ||
| Rapid feed rate | 35m/min(Y1,Z1,Y3,X2,Z2) 24m/min(X1,X3) 15m/min(Y2) |
||
| Main spindle indexing angle | C-axis control | ||
| Main spindle speed | max.15,000min-1 | ||
| Main spindle motor | 2.2kw (Continuous) / 3.7kw (10min/25%ED) | ||
| Dimensions (W×D×H) | 1,995 × 920 × 1,700mm | ||
| Weight | 2,100kg | ||
| Power consumption | 4.4KVA | ||
Backworking Attachment
| Item | SW-12RII | ||
|---|---|---|---|
| Max.chucking diameter | ø 13mm (33/64in) | ||
| Max.length for front ejection | 80mm (3-5/32in) | ||
| Max.work projection length | 20mm (25/32in) | ||
| 8-spindle unit | Number of tools | 8 tools | |
| Max.drilling capability | Stationary tool | ø 8mm (5/16in) | |
| Power-driven att. | ø 5mm (3/16in) | ||
| Max.tapping capabilily | Stationary tool | M6 × P1.0 | |
| Power-driven att. | M4 ×P0.7 | ||
| Sub spindle indexing angle | C-axis control | ||
| Sub spindle speed | max.15,000min-1 | ||
| Sub spindle motor | 2.2kw (Continuous) / 3.7kw (10min./25%ED) |
||
