Star CNC Swiss Type Automatic Lathe SR38 B
Complex machining for large diameter workpieces now aim for higher functionality,productivity and accuracy.
A balance-cut function by X1/X3 axis simultaneous control for high accuracy and high efficiency.
This machine employs a power-driven tool unit with B-axis control function.
The guide bush and non-guide bush are interchangeable. The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
商品說明
 |
|||
|---|---|---|---|

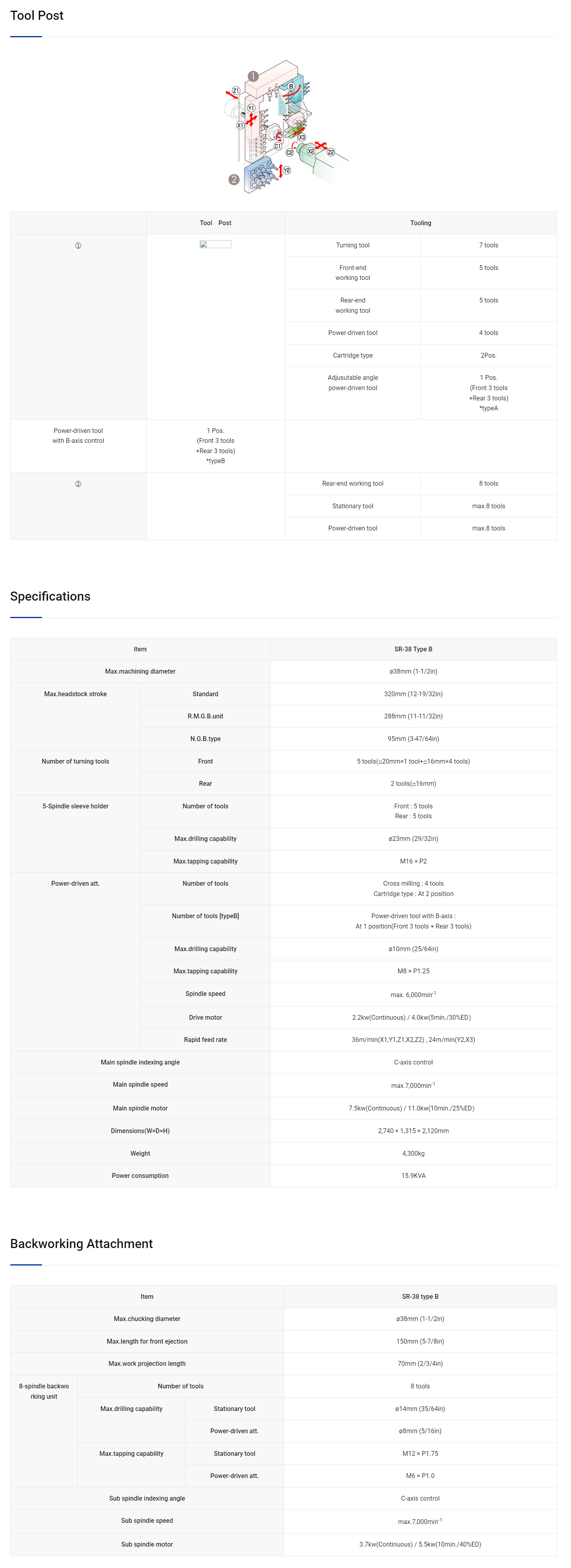

| Tool Post | Tooling | ||
| ① |  |
Turning tool | 7 tools |
| Front-end working tool |
5 tools | ||
| Rear-end working tool |
5 tools | ||
| Power-driven tool | 4 tools | ||
| Cartridge type | 2Pos. | ||
| Adjusutable angle power-driven tool |
1 Pos. (Front 3 tools +Rear 3 tools) *typeA |
||
| Power-driven tool with B-axis control |
1 Pos. (Front 3 tools +Rear 3 tools) *typeB |
||
| ② |  |
Rear-end working tool | 8 tools |
| Stationary tool | max.8 tools | ||
| Power-driven tool | max.8 tools | ||
Specifications
| Item | SR-38 | |
|---|---|---|
| Max.machining diameter | ø38mm (1-1/2in) | |
| Max.headstock stroke | Standard | 320mm (12-19/32in) |
| R.M.G.B.unit | 288mm (11-11/32in) | |
| N.G.B.type | 95mm (3-47/64in) | |
| Number of turning tools | Front | 5 tools(□20mm×1 tool+□16mm×4 tools) |
| Rear | 2 tools(□16mm) | |
| 5-Spindle sleeve holder | Number of tools | Front : 5 tools Rear : 5 tools |
| Max.drilling capability | ø23mm (29/32in) | |
| Max.tapping capability | M16 × P2 | |
| Power-driven att. | Number of tools | Cross milling : 4 tools Cartridge type : At 2 position |
| Number of tools [typeA] | Adjustable angle power-driven tool : At 1 position(Front 3 tools + Rear 3 tools) |
|
| Number of tools [typeB] | Power-driven tool with B-axis : At 1 position(Front 3 tools + Rear 3 tools) |
|
| Max.drilling capability | ø10mm (25/64in) | |
| Max.tapping capability | M8 × P1.25 | |
| Spindle speed | max. 6,000min-1 | |
| Drive motor | 2.2kw(Continuous) / 4.0kw(5min./30%ED） | |
| Rapid feed rate | 36m/min(X1,Y1,Z1,X2,Z2) , 24m/min(Y2,X3) | |
| Main spindle indexing angle | C-axis control | |
| Main spindle speed | max.7,000min-1 | |
| Main spindle motor | 7.5kw(Continuous) / 11.0kw(10min./25%ED） | |
| Dimensions(W×D×H) | 2,740 × 1,315 × 2,120mm | |
| Weight | 4,300kg | |
| Power consumption | 15.9KVA | |
Backworking Attachment
| Item | SR-38 | ||
|---|---|---|---|
| Max.chucking diameter | ø38mm (1-1/2in) | ||
| Max.length for front ejection | 150mm (5-7/8in) | ||
| Max.work projection length | 70mm (2/3/4in) | ||
| 8-spindle backworking unit | Number of tools | 8 tools | |
| Max.drilling capability | Stationary tool | ø14mm (35/64in) | |
| Power-driven att. | ø8mm (5/16in) | ||
| Max.tapping capability | Stationary tool | M12 × P1.75 | |
| Power-driven att. | M6 × P1.0 | ||
| Sub spindle indexing angle | C-axis control | ||
| Sub spindle speed | max.7,000min-1 | ||
| Sub spindle motor | 3.7kw(Continuous) / 5.5kw(10min./40%ED) | ||
