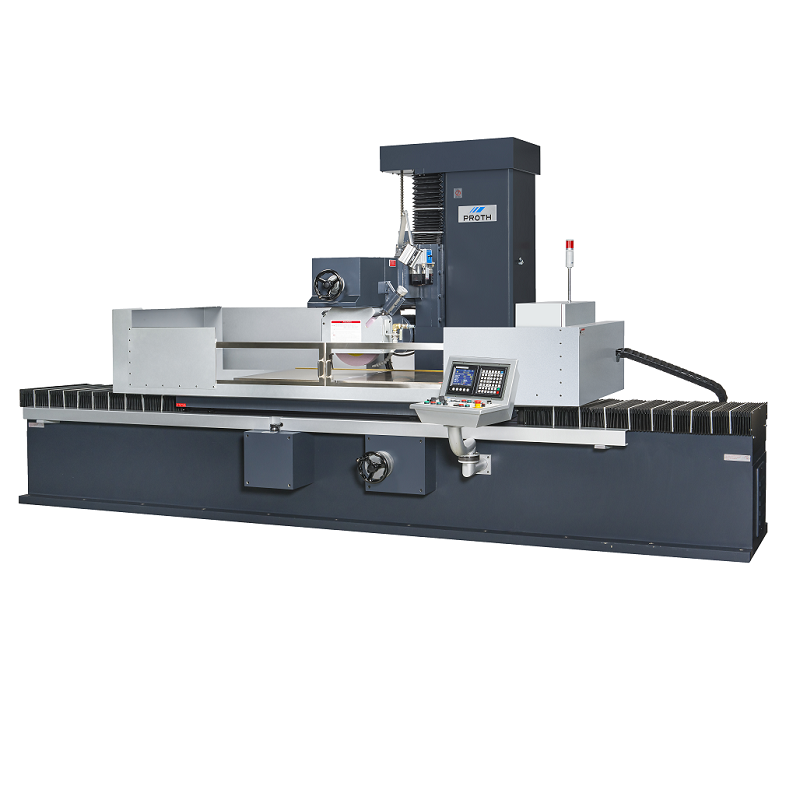

上一PROTH PSGO-60150AHR / 75150AHR / 75220AHR / 75300AHR

Products

Product Description

Longitudinal Slideways	Cross Slideways	Longitudinal Movement	Cross Movement	Vertical Downfeed	Auto Down Feed
Double Vee Ways	Flat Doveail Type Gibbed Ways	Hydrulic	Automatic	Rapid Up/Down	Optional

The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection(except PSGS series).

Product Feature

SPECIFICATION / MODELS		PSGO
SPECIFICATION / MODELS		60150AHR	75150AHR	75220AHR	75300AHR
General Capacity	Max. travel (cross x longitudinal)	660x1650mm	810x1650mm	810x2350mm	810x3150mm
	Spindle center height from table	700(950)mm
	Max height from table top to bottom of standard wheel
	Grinding surface of table	600x1500mm	750x1500mm	750x2200mm	750x3000mm
Longitudinal Movement	Hydraulic table speed	1-25m/min
Cross Movement	Intermittent cross feed-approx.(Electro-mechanical)	0.1-15mm/feed
	Continuous cross feed-approx.(Electro-mechanical)	2000mm/min(50Hz),2400mm/min(60Hz)
	Hand feed per revolution	5mm
	Hand feed per division	0.02mm
Vertical Downfeed	Rapid traverse approx.(option)	240mm/min
	Hand feed per revolution	0.25mm
	Hand feed per division	0.0025mm
Grinding Wheel	Dimension(O.D x W x I.D)	355x50x127mm
Grinding Wheel	Spindle speed(50/60Hz)	1500/1800 r.p.m.
Motor	Spindle motor	7.5(11)kW/10(15)HP
Motor	Hydraulic motor	5.6kW/7.5HP
Weight	Net weight	9350kg	11000kg	12500kg	14400kg
Weight	Gross weight	10800kg	12300kg	14000kg	16000kg
Packing Size	Dimension (L x W x H) (m)	5.4×2.27×2.8		6.92×2.27×2.8	7.47×2.27×2.8
